Part Image

XC6227C501PR-G - Torex

Description: LDO Voltage Regulators 700mA High Speed LDO Regulator

Download XC6227C501PR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

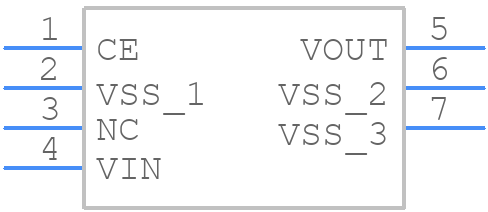

Symbol
XC6227C501PR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6227C501PR-G - Torex PCB footprint - Other - Other - SOT-89-5_3
click to zoom
3D Models
XC6227C501PR-G - Torex - 3D model - Other - SOT-89-5_3
click to zoom

XC6227C501PR-G Details

  • Manufacturer Part Number:

    XC6227C501PR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Line Regulation-Max:

    0.0025%

  • Load Regulation-Max:

    0.1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.7 A

  • Output Voltage1-Max:

    5.05 V

  • Output Voltage1-Min:

    4.95 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOF

  • Package Equivalence Code:

    TO-243

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    1.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tolerance-Max:

    1%

  • Width:

    2.5 mm

XC6227C501PR-G Frequently Asked Questions (FAQs)

  • Torex provides a recommended PCB layout in their application note AN102, which includes guidelines for component placement, thermal vias, and copper pours to ensure optimal thermal performance and minimize noise.
  • Torex recommends using a thermal pad on the bottom of the package and connecting it to a copper pour on the PCB. The thermal pad should be connected to a large copper area on the PCB to dissipate heat effectively.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, it's recommended to keep it within the VCC voltage range (2.5V to 5.5V) to ensure proper operation and prevent damage to the device.
  • The XC6227C501PR-G is rated for operation up to 105°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
  • Torex provides a troubleshooting guide in their application note AN101, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and other debugging tools to analyze the device's behavior and identify the root cause of the problem.
