Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors as close as possible to the IC pins.
To ensure stable output voltage, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a minimum capacitance of 1uF. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating.
The maximum ambient temperature for reliable operation of XC6230A001ER-G is 85°C. However, it's recommended to derate the output current and input voltage to ensure reliable operation at higher temperatures.
Yes, XC6230A001ER-G is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the IC is securely attached to the PCB. Additionally, consider using a vibration-resistant capacitor for the output capacitor.
To troubleshoot XC6230A001ER-G, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output current is within the specified maximum rating. Check for any signs of overheating, and ensure that the PCB layout and component selection meet the recommended guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6230A001ER-G Overview

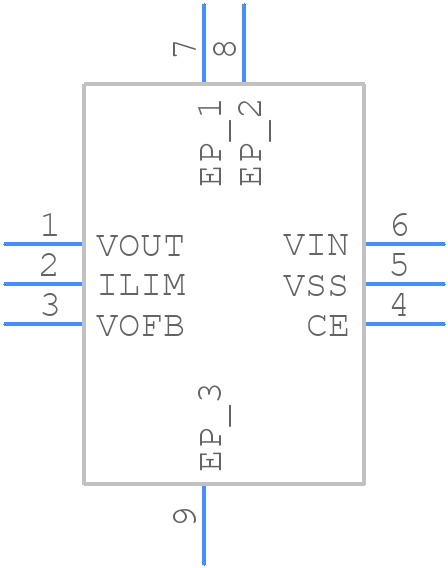

Use the download button to access the XC6230A001ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC623,
or try a keyword search, such as Linear Regulator ICs
