XC6230H001ER-G - Torex

Description: LDO Voltage Regulators Adjustable Voltage - Multifunction 2A High Speed LDO Regulator

Download XC6230H001ER-G Model

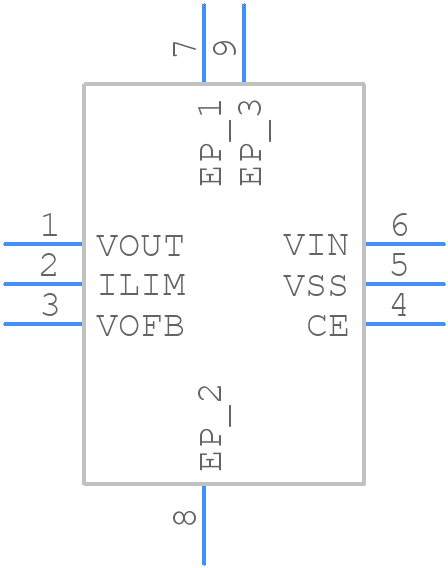

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC6230H001ER-G - Torex PCB footprint - Other - Other - XC6230H001ER-G-3
click to zoom
3D Models
XC6230H001ER-G - Torex  - 3D model - Other - XC6230H001ER-G-3
click to zoom

XC6230H001ER-G Details

  • Manufacturer Part Number:

    XC6230H001ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.41 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.1

  • Load Regulation-Max(%):

    1.16%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL SILVER GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC6230H001ER-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC6230H001ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to use the recommended output capacitor value and type, and to place it close to the IC. Additionally, the input voltage should be well-regulated, and the input capacitor should be of high quality and low ESR.
  • The maximum ambient temperature range for the XC6230H001ER-G is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. Consult the datasheet for more information.
  • Yes, the XC6230H001ER-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • To protect the XC6230H001ER-G from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range.
