A good PCB layout for XC6231A332PR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC6231A332PR-G output voltage, it is essential to use the recommended output capacitor value and type, and to place it close to the IC. Additionally, the input voltage should be stable and within the recommended range, and the PCB layout should be optimized for minimal noise and EMI.
The maximum ambient temperature range for the XC6231A332PR-G is -40°C to +85°C. However, the device can operate at a junction temperature of up to 125°C, but the ambient temperature should be derated accordingly to ensure reliable operation.
Yes, the XC6231A332PR-G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow the recommended operating conditions and PCB layout guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the XC6231A332PR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are of the recommended type and value, and that the PCB layout is optimized for minimal noise and EMI. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6231A332PR-G Overview

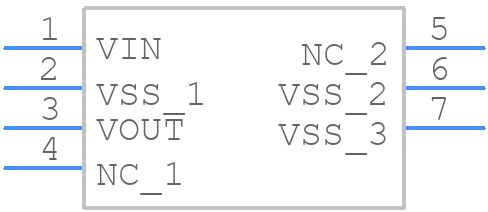

Use the download button to access the XC6231A332PR-G schematic symbol, PCB footprint, and 3D model.
