XC6701B902MR-G - Torex

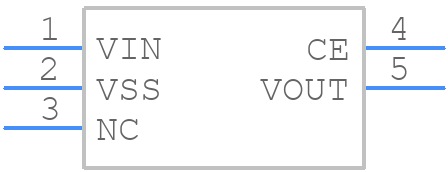

XC6701B902MR-G Details

• Manufacturer Part Number:

  XC6701B902MR-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-25, 5 PIN

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Torex Semiconductor LTD

• YTEOL:

  10

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.95 V

• Dropout Voltage1-Nom:

  0.7 V

• Input Voltage Absolute-Max:

  30 V

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  11 V

• JESD-30 Code:

  R-PDSO-G5

• JESD-609 Code:

  e3

• Length:

  2.9 mm

• Line Regulation-Max:

  0.459%

• Load Regulation-Max(%):

  0.175%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  9.18 V

• Output Voltage1-Min:

  8.82 V

• Output Voltage1-Nom:

  9 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  TSOP5/6,.11,37

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.3 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Voltage Tolerance-Max:

  2%

• Width:

  1.6 mm
