XC6702D501ER-G - Torex

Description: IC REG LINEAR 5V 300MA 6USPC,Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-USPC (1.8x2)

Download XC6702D501ER-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

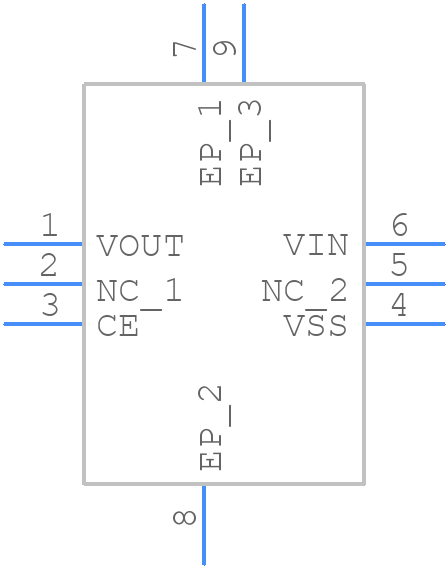

XC6702D501ER-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6702D501ER-G - Torex PCB footprint - Other - Other - XC6702D501ER-G-2
click to zoom
3D Models
XC6702D501ER-G - Torex - 3D model - Other - XC6702D501ER-G-2
click to zoom

XC6702D501ER-G Details

  • Manufacturer Part Number:

    XC6702D501ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USP-6

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2016-04-07

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage Absolute-Max:

    42 V

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Line Regulation-Max:

    0.04575%

  • Load Regulation-Max:

    0.23%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    5.2 V

  • Output Voltage1-Min:

    4.8 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL SILVER GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tolerance-Max:

    4%

  • Width:

    1.8 mm

XC6702D501ER-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for all components.
  • To ensure stable output voltage, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, ensure the input voltage is within the recommended range, and the output voltage is set correctly using the FB pin.
  • The maximum ambient temperature for reliable operation of XC6702D501ER-G is 85°C. However, it's recommended to derate the output current and consider thermal design considerations to ensure reliable operation at high temperatures.
  • Yes, XC6702D501ER-G is suitable for high-reliability and automotive applications. However, it's essential to follow Torex's recommended design guidelines, and ensure the device is operated within the recommended specifications. Additionally, consider using automotive-grade components and following relevant industry standards (e.g., AEC-Q100).
  • To troubleshoot issues with XC6702D501ER-G, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to monitor the output voltage and current. If issues persist, consult Torex's application notes and contact their technical support team for further assistance.
