XC6902N251MR-G - Torex

Description: LDO Voltage Regulators

Download XC6902N251MR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

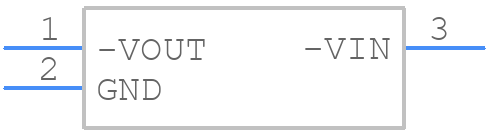

XC6902N251MR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6902N251MR-G - Torex PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23
click to zoom
3D Models
XC6902N251MR-G - Torex - 3D model - SOT23 (3-Pin) - SOT-23
click to zoom

XC6902N251MR-G Details

  • Manufacturer Part Number:

    XC6902N251MR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 3 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.129 V

  • Input Voltage Absolute-Max:

    18 V

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.4 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Line Regulation-Max:

    0.0625%

  • Load Regulation-Max(%):

    0.06%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    2.53 V

  • Output Voltage1-Min:

    2.47 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.3 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    1.6 mm

XC6902N251MR-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC6902N251MR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the XC6902N251MR-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. The output capacitor should be placed close to the IC, and the output voltage should be monitored to prevent oscillations.
  • The maximum ambient temperature range for the XC6902N251MR-G is -40°C to 85°C. However, the device can operate at a higher temperature range with derating. It is essential to ensure that the device does not exceed the maximum junction temperature of 125°C.
  • Yes, the XC6902N251MR-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
  • To troubleshoot issues with the XC6902N251MR-G, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes or contact the manufacturer's support team.
