XC6902NC01ER-G - Torex

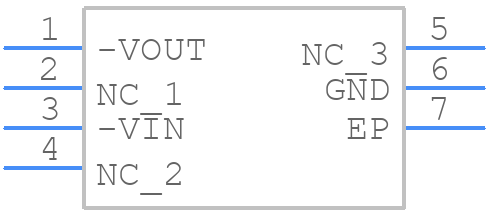

XC6902NC01ER-G Details

• Manufacturer Part Number:

  XC6902NC01ER-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  USP-6

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Torex Semiconductor LTD

• YTEOL:

  7

• Adjustability:

  FIXED

• Dropout Voltage1-Nom:

  0.05 V

• Input Voltage Absolute-Max:

  18 V

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  2.4 V

• JESD-30 Code:

  R-PDSO-N6

• Length:

  2 mm

• Line Regulation-Max:

  0.108%

• Load Regulation-Max:

  0.06%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Voltage1-Max:

  12.03 V

• Output Voltage1-Min:

  11.97 V

• Output Voltage1-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.07,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.6 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Silver/Gold (Ni/Ag/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Voltage Tolerance-Max:

  1.5%

• Width:

  1.8 mm
