The maximum power consumption of XC7S6-2FTGB196C is approximately 1.5W, but it can vary depending on the design, clock frequency, and operating conditions.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, reduce clock frequencies, use power-saving modes, and optimize the design for low power consumption.
The maximum clock frequency supported by XC7S6-2FTGB196C is 500 MHz, but it can vary depending on the design, temperature, and operating conditions.
To ensure signal integrity, use the Xilinx Signal Integrity Tool (SIT), follow the Xilinx guidelines for PCB design, and use proper termination and routing techniques.
The maximum temperature range for XC7S6-2FTGB196C is -40°C to 100°C, but it can vary depending on the specific grade and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC7S6-2FTGB196C Overview

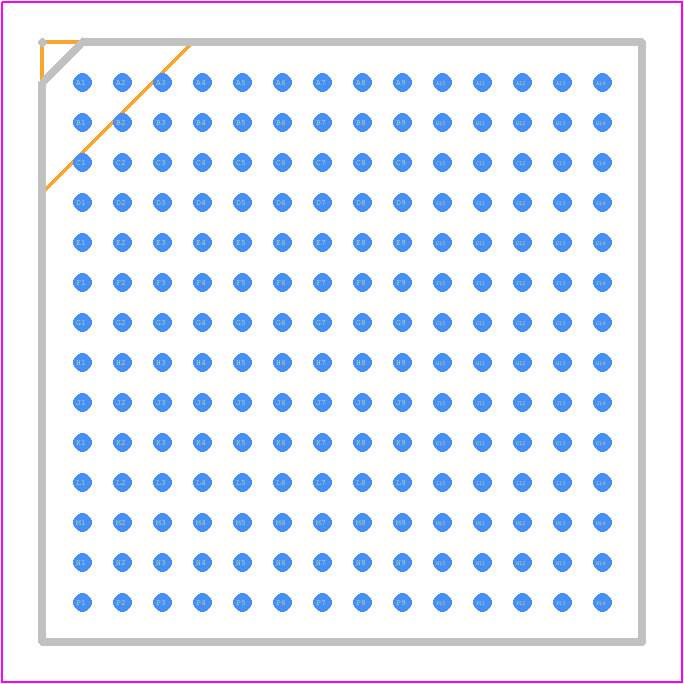

Use the download button to access the XC7S6-2FTGB196C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7S6,
or try a keyword search, such as Field Programmable Gate Arrays
