XC9128B45CAR-G - Torex

Description: Switching Voltage Regulators

Download XC9128B45CAR-G Model

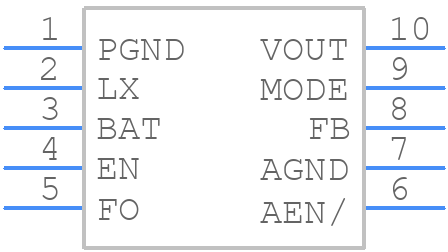

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC9128B45CAR-G - Torex PCB footprint - Small Outline Packages - Small Outline Packages - XC9128B45CAR-G
click to zoom
3D Models
XC9128B45CAR-G - Torex  - 3D model - Small Outline Packages - XC9128B45CAR-G
click to zoom

XC9128B45CAR-G Details

  • Manufacturer Part Number:

    XC9128B45CAR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

XC9128B45CAR-G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the Torex application note for detailed guidelines.
  • Implement a capacitor filter at the input (e.g., 10uF ceramic capacitor) and ensure the input voltage is within the recommended range (2.5V to 5.5V). Additionally, use a low-ESR output capacitor (e.g., 10uF ceramic capacitor) to minimize output voltage ripple.
  • The maximum allowable ripple voltage on the input is 100mVp-p. Exceeding this may affect the regulator's performance and stability.
  • The XC9128B45CAR-G is rated for operation up to 125°C. However, derating is required for temperatures above 85°C. Consult the datasheet for thermal derating curves and ensure proper heat sinking and thermal management.
  • Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp at the input to protect the regulator from voltage surges or spikes. Ensure the TVS diode is rated for the maximum expected voltage surge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC9128B45CAR-G Overview

Use the download button to access the XC9128B45CAR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC912, or try a keyword search, such as Switching Regulator or Controllers
