XC9140A501MR-G - Torex

Description: Switching Voltage Regulators PFM Control Snchrns StepUpDCDC Converter

Download XC9140A501MR-G Model

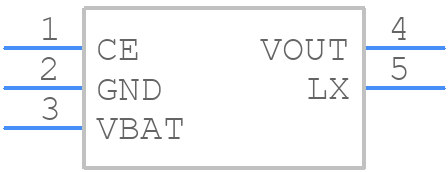

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC9140A501MR-G - Torex PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-25 (unit: mm)
click to zoom
3D Models
XC9140A501MR-G - Torex  - 3D model - SOT23 (5-Pin) - SOT-25 (unit: mm)
click to zoom

XC9140A501MR-G Details

  • Manufacturer Part Number:

    XC9140A501MR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-25, 5 PINS

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.9 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.7 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Current-Max (Isup):

    10.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.6 mm

XC9140A501MR-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC9140A501MR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the XC9140A501MR-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. The output capacitor should be placed close to the IC, and the output voltage should be monitored and adjusted as needed.
  • The maximum ambient temperature range for the XC9140A501MR-G is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. It is essential to ensure that the device does not exceed the maximum junction temperature of 150°C.
  • Yes, the XC9140A501MR-G is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
  • To troubleshoot issues with the XC9140A501MR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
