Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. Keep the input and output traces as short as possible and avoid routing them near noise sources. Use a 10uF ceramic capacitor for input decoupling and a 1uF ceramic capacitor for output decoupling.
Ensure good thermal design and heat dissipation by providing a sufficient heat sink or thermal pad on the PCB. Keep the device away from heat sources and ensure good airflow. Monitor the device temperature and adjust the operating conditions accordingly.
Torex recommends a 10uF ceramic capacitor (X5R or X7R dielectric) with a voltage rating of 10V or higher. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
Yes, XC9142A33CER-G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, PCB design, and component selection guidelines to ensure the device meets the required reliability and quality standards.
Check the input voltage, output voltage, and current consumption. Verify the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for noise, ripple, or oscillations on the input and output. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9142A33CER-G Overview

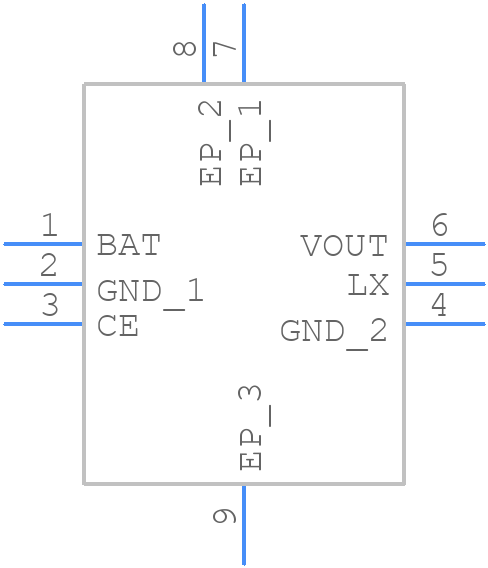

Use the download button to access the XC9142A33CER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC914,
or try a keyword search, such as Switching Regulator or Controllers
