SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Seated Height-Max:
0.6 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
3450 kHz
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
1.8 mm
XC9144B10CER-G Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance of XC9144B10CER-G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stable operation over the entire operating temperature range, it is recommended to use a high-quality input capacitor with low ESR, to keep the input voltage within the recommended range, and to ensure good thermal design and heat dissipation on the PCB.
The maximum allowable ripple voltage on the input of XC9144B10CER-G is typically 100mVp-p. Exceeding this value may affect the stability and performance of the device.
Yes, a ceramic capacitor can be used as the output capacitor, but it is recommended to use a capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating to ensure stable operation and minimize output voltage ripple.
The output voltage tolerance of XC9144B10CER-G can be calculated by considering the initial voltage tolerance, temperature coefficient, and aging. The datasheet provides the necessary information to calculate the output voltage tolerance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9144B10CER-G Overview

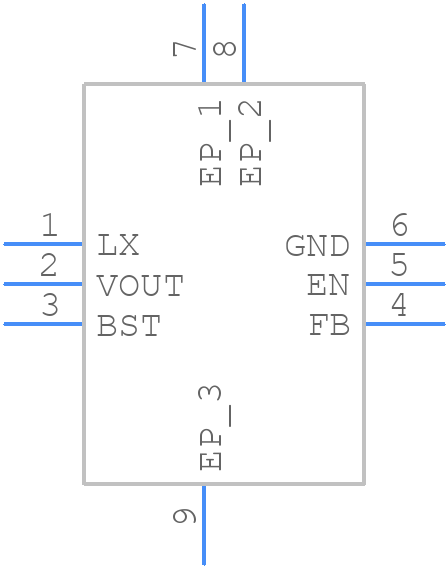

Use the download button to access the XC9144B10CER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC914,
or try a keyword search, such as Switching Regulator or Controllers
