According to the datasheet, the thermal derating of the XC9252A08AVR-G is 6.4mW/°C. This means that for every 1°C increase in ambient temperature above 25°C, the maximum power dissipation of the device is reduced by 6.4mW.
While the XC9252A08AVR-G is rated for operation up to 85°C, it's recommended to derate the power consumption accordingly to ensure reliable operation. Consult the datasheet for thermal derating information and consider heat sink designs or cooling solutions if required.
To ensure stable operation, follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, add bypass capacitors (e.g., 1μF ceramic capacitors) close to the VIN and VOUT pins to filter out noise and transient spikes.
Yes, the XC9252A08AVR-G is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5μA (typical) and low dropout voltage (VDO) of 200mV (typical) at 1mA output current. This makes it an excellent choice for low-power, low-voltage applications.
For stable operation, use a low-ESR output capacitor (e.g., ceramic or film capacitor) with a minimum value of 1μF and a maximum value of 10μF. The output capacitor should be rated for the maximum output voltage and be placed close to the VOUT pin.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9252A08AVR-G Overview

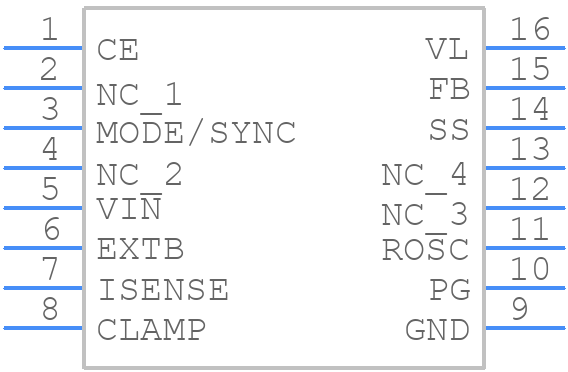

Use the download button to access the XC9252A08AVR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC925,
or try a keyword search, such as Switching Regulator or Controllers
