A good PCB layout for XC9270B085QR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC9270B085QR-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output capacitor.
The maximum ambient temperature range for the XC9270B085QR-G is -40°C to +85°C. However, the device can operate at a higher temperature range with derating.
Yes, the XC9270B085QR-G is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing. However, it is essential to follow proper design and layout guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the XC9270B085QR-G, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for any oscillations or noise on the output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9270B085QR-G Overview

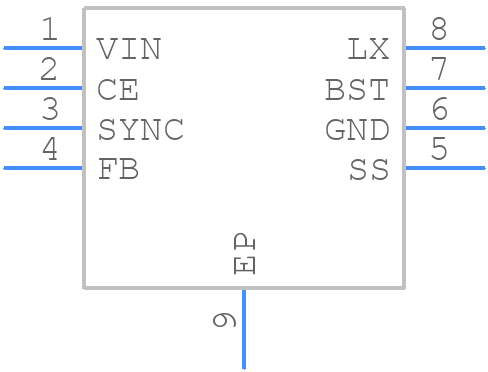

Use the download button to access the XC9270B085QR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC927,
or try a keyword search, such as Switching Regulator or Controllers
