XC9519A12AZR-G - Torex

Description: 稳压器—开关式稳压器 Dual Output Step-UP InvertingDCDC Cnvrtr

Download XC9519A12AZR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

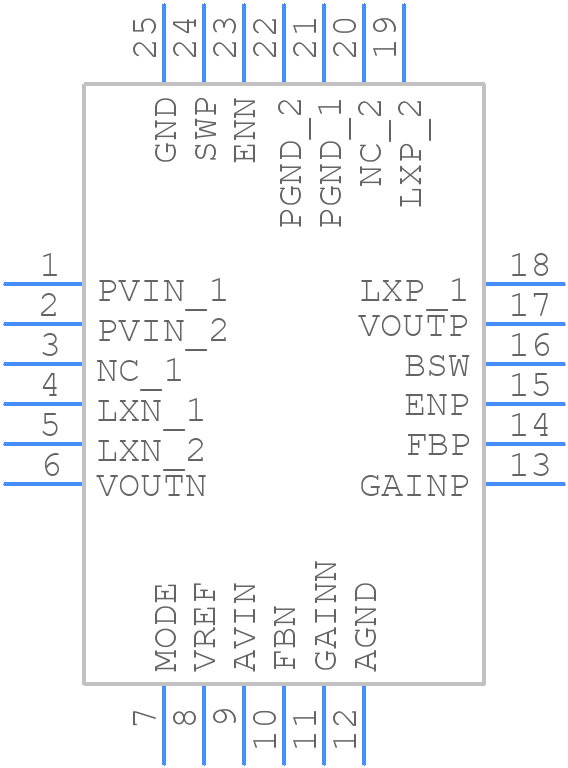

XC9519A12AZR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC9519A12AZR-G - Torex PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24
click to zoom
3D Models
XC9519A12AZR-G - Torex - 3D model - Quad Flat No-Lead - QFN-24
click to zoom

XC9519A12AZR-G Details

  • Manufacturer Part Number:

    XC9519A12AZR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    10

XC9519A12AZR-G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern on the PCB are also recommended.
  • Ensure that the input capacitor is placed close to the VIN pin, and the output capacitor is placed close to the VOUT pin. Also, use a low-ESR capacitor for the output capacitor.
  • The maximum ambient temperature for reliable operation is 85°C. However, it's recommended to derate the output current at higher temperatures to ensure reliable operation.
  • No, it's not recommended to use a ceramic capacitor for the input capacitor due to its high ESR. A low-ESR electrolytic capacitor or a polymer capacitor is recommended instead.
  • The output voltage tolerance is ±2% of the nominal output voltage. You can calculate the tolerance by multiplying the nominal output voltage by 0.02.
