Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure stable operation, follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. It's also essential to ensure good airflow and avoid thermal hotspots.
Torex recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1uF to 10uF, depending on the input voltage and output current requirements. The capacitor should be placed close to the VIN pin and have a low inductance path to the GND pin.
While XCL101A301BR-G is designed for low-power applications, it can be used in high-current applications with proper thermal management and PCB design. However, it's essential to ensure the IC's power dissipation and junction temperature remain within the recommended limits. Consult with Torex's application engineers for customized guidance.
Start by verifying the input voltage, output current, and PCB layout against the recommended operating conditions. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines, and contact Torex's technical support if needed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL101A301BR-G Overview

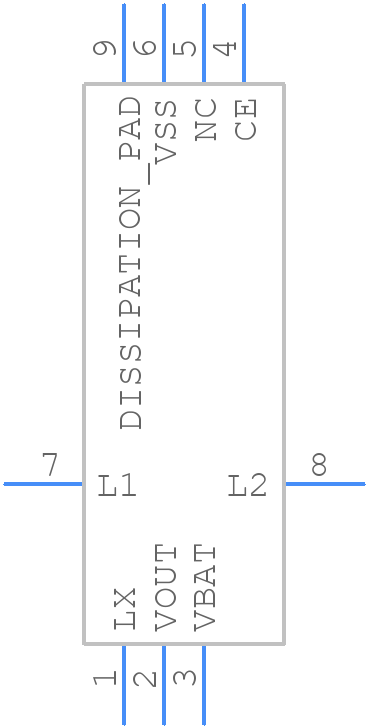

Use the download button to access the XCL101A301BR-G schematic symbol and PCB footprint.
