Torex recommends a compact PCB layout with short traces and minimal vias to reduce noise and parasitic inductance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for analog and digital grounds.
To ensure stable output voltage, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, ensure the input voltage is within the recommended range, and the output current is within the specified maximum rating.
The maximum ambient temperature for XCL101A451ER-G is 85°C. However, the device can operate up to 125°C with derating. Refer to the datasheet for detailed thermal derating information.
Yes, XCL101A451ER-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard for automotive grade devices and has a high MTBF (Mean Time Between Failures) rating. However, ensure you follow the recommended operating conditions and design guidelines to ensure reliable operation.
To troubleshoot issues with XCL101A451ER-G, start by verifying the input voltage, output current, and ambient temperature are within the recommended ranges. Check the PCB layout for any noise or thermal issues. Use an oscilloscope to monitor the output voltage and input voltage ripple. If the issue persists, contact Torex Semiconductor's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL101A451ER-G Overview

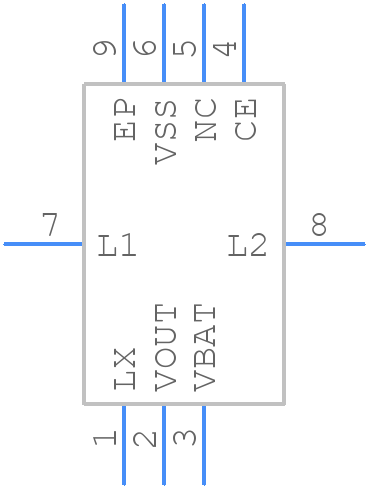

Use the download button to access the XCL101A451ER-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
