A good PCB layout for XCL101A501ER-G involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the IC. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the FB pin and the output pin.
Although the datasheet specifies a maximum input voltage of 6.5V, it is recommended to limit the input voltage to 6V to ensure reliable operation and to prevent damage to the IC.
While XCL101A501ER-G is rated for operation up to 85°C, it is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. It is also recommended to use a heat sink or a thermal pad to dissipate heat.
To troubleshoot issues with XCL101A501ER-G, check the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Also, check for any signs of overheating or physical damage to the IC.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL101A501ER-G Overview

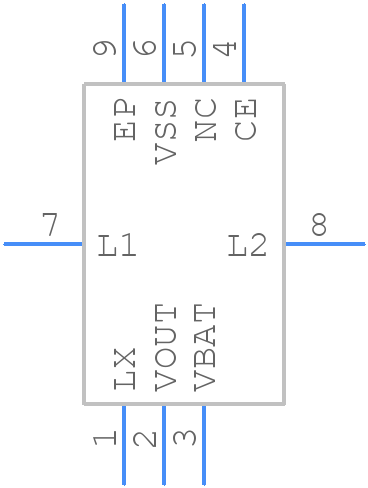

Use the download button to access the XCL101A501ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
