Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pin. A thermal via under the IC is also recommended for heat dissipation.
To ensure stability, make sure to follow the recommended component values and PCB layout. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. The feedback resistors should also be of high precision and low tolerance. Finally, verify that the output voltage is within the specified range and that the output current is within the recommended limits.
The maximum ambient temperature for the XCL101C501ER-G is 85°C. However, the IC can operate up to 125°C with derating. It's essential to ensure proper heat dissipation and thermal management to prevent overheating and ensure reliable operation.
Yes, the XCL101C501ER-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and that the components are properly soldered to prevent mechanical stress and vibration-induced failures.
The recommended input voltage range for the XCL101C501ER-G is 2.5V to 5.5V. Operating the IC outside of this range may affect its performance, stability, and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL101C501ER-G Overview

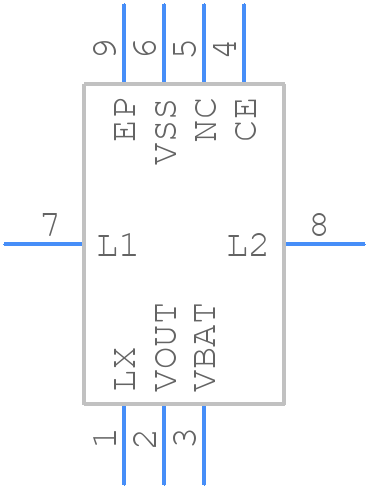

Use the download button to access the XCL101C501ER-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
