Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, placing decoupling capacitors close to the device can help improve performance.
To ensure the XCL102D303CR-G operates within its recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage lockout, and over-current protection to prevent damage to the device. Also, ensure the device is operated within its recommended temperature range.
Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF as the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating that exceeds the maximum input voltage.
The output voltage of XCL102D303CR-G can be calculated using the following formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.2V), R1 is the feedback resistor, and R2 is the divider resistor. The output voltage can be adjusted by changing the values of R1 and R2.
The maximum output current capability of XCL102D303CR-G is 3A. However, the output current should be derated based on the ambient temperature and the output voltage to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL102D303CR-G Overview

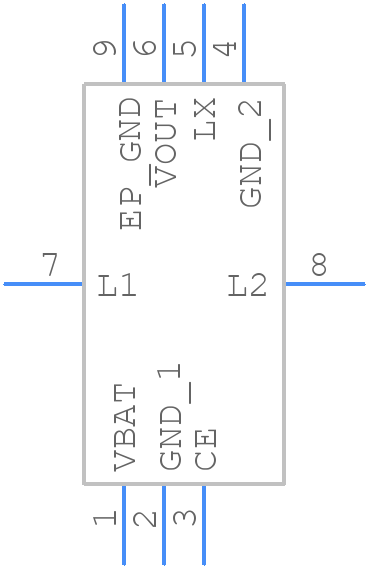

Use the download button to access the XCL102D303CR-G schematic symbol, PCB footprint, and 3D model.
