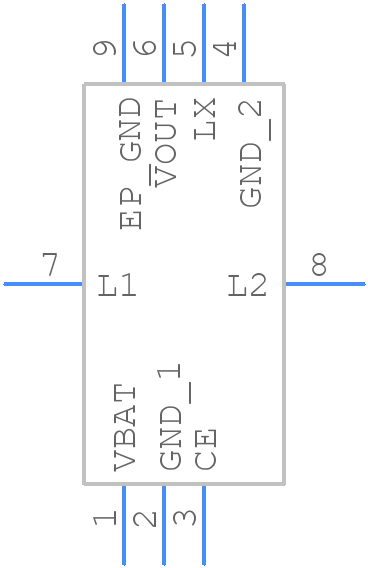

XCL102D313CR-G - Torex

XCL102D313CR-G Details

• Manufacturer Part Number:

  XCL102D313CR-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  CL-2025-02, 8 PIN

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Torex Semiconductor LTD

• YTEOL:

  10

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  0.65 V

• Input Voltage-Nom:

  1.5 V

• JESD-30 Code:

  R-XQCC-N8

• Length:

  2.5 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.3 A

• Output Voltage-Max:

  3.162 V

• Output Voltage-Min:

  3.038 V

• Output Voltage-Nom:

  3.1 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HQCCN

• Package Equivalence Code:

  LCC8(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG

• Seated Height-Max:

  1.04 mm

• Supply Current-Max (Isup):

  3 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  3600 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.55 mm

• Terminal Position:

  QUAD

• Width:

  2 mm
