A good PCB layout for XCL102D503CR-G involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the IC. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the FB pin and the output pin.
The maximum ambient temperature range for XCL102D503CR-G is -40°C to 85°C. However, the device can operate up to 105°C with a derated output current.
Yes, XCL102D503CR-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) of 10,000,000 hours and is manufactured using a robust process that ensures high reliability.
XCL102D503CR-G has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. The OCP limits the output current to 2.5A, and the TSD turns off the device when the junction temperature exceeds 150°C. Additionally, it is recommended to add external protection devices such as fuses or PTC thermistors to protect the device from overcurrent and overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL102D503CR-G Overview

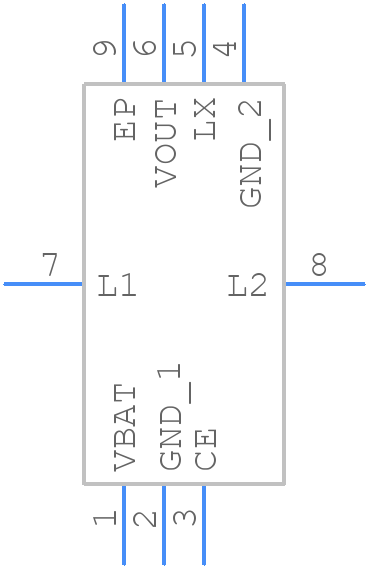

Use the download button to access the XCL102D503CR-G schematic symbol, PCB footprint, and 3D model.
