A recommended PCB layout for XCL102D553CR-G includes a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 10uF) placed close to the device. Additionally, it's recommended to use a thermal relief pattern for the exposed pad to ensure good thermal dissipation.
To ensure the stability of the output voltage, it's essential to follow the recommended capacitor selection guidelines in the datasheet. Additionally, the output capacitor should be placed close to the device, and the input capacitor should be placed close to the input power source. It's also recommended to use a low-ESR capacitor (e.g., ceramic or polymer) for the output capacitor.
The maximum ambient temperature for XCL102D553CR-G is 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation.
Yes, XCL102D553CR-G is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration and shock requirements of the application.
To troubleshoot issues with XCL102D553CR-G, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output voltage. Finally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL102D553CR-G Overview

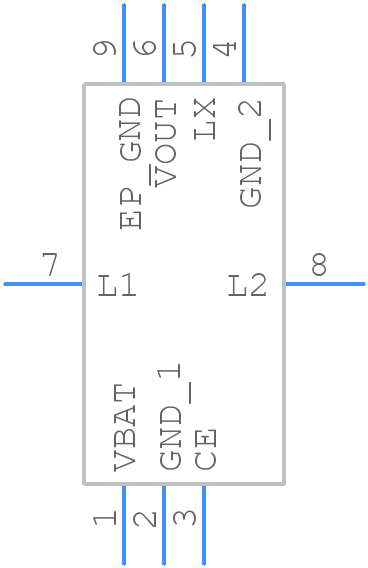

Use the download button to access the XCL102D553CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
