A good PCB layout for XCL103D503CR-G involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is essential to use the recommended output capacitor value and type, and to place it close to the IC. Additionally, the input voltage should be stable and within the recommended range, and the input capacitor should be of sufficient value to filter out noise.
The maximum ambient temperature range for XCL103D503CR-G is -40°C to 85°C. However, the device can operate at a higher temperature range with derating. It is essential to ensure that the device does not exceed the maximum junction temperature of 125°C.
Yes, XCL103D503CR-G is suitable for high-reliability applications. It is manufactured using a robust process, and the device is designed to meet the requirements of high-reliability applications. However, it is essential to follow the recommended operating conditions and to perform thorough testing and validation.
To troubleshoot issues with XCL103D503CR-G, start by checking the input voltage and current, and ensuring that they are within the recommended range. Check the output voltage and current, and verify that they are within the expected range. Check for any signs of overheating, and verify that the device is properly soldered and mounted.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL103D503CR-G Overview

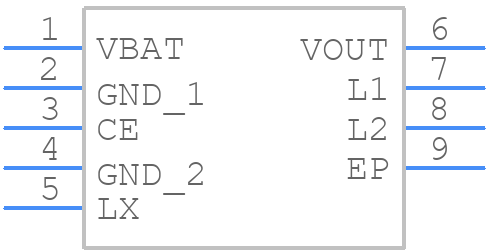

Use the download button to access the XCL103D503CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
