Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage.
The maximum ambient temperature for XCL103D553CR-G is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the thermal management and heat dissipation in the system design.
Yes, XCL103D553CR-G is designed to withstand vibrations up to 10G (10-2000Hz) and 20G (20-2000Hz) in the X, Y, and Z axes. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure reliable operation.
The typical start-up time for XCL103D553CR-G is around 1ms, but it can vary depending on the input voltage, output voltage, and load conditions. It's essential to consider the start-up time in the system design to ensure proper operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL103D553CR-G Overview

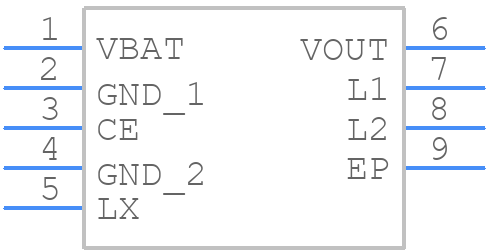

Use the download button to access the XCL103D553CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
