A recommended PCB layout for XCL103E333CR-G includes a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 10uF) placed close to the IC. Additionally, it's recommended to use a thermal relief pattern for the GND pin to ensure good heat dissipation.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor (e.g., 10uF to 22uF) with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the input capacitor should be selected based on the input voltage and current requirements.
The maximum ambient temperature for XCL103E333CR-G is 85°C. However, the device can operate up to 105°C with a derated output current. It's essential to ensure proper heat dissipation and thermal management to prevent overheating.
Yes, XCL103E333CR-G is designed to operate in high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, the PCB should be designed to withstand the vibration levels expected in the application.
To troubleshoot issues with XCL103E333CR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or burning smells. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL103E333CR-G Overview

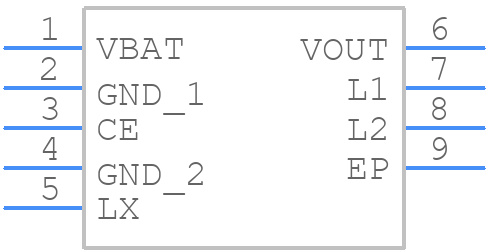

Use the download button to access the XCL103E333CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
