XCL108B541ER-G - Torex

Description: 400nA Ultra-Low Quiescent 0.5A PWM/PFM Inductor Built-in Step-up DC/DC Converters

Download XCL108B541ER-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

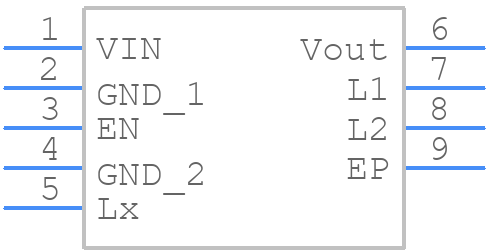

Symbol
XCL108B541ER-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL108B541ER-G - Torex PCB footprint - Other - Other - CL-2025-02
click to zoom
3D Models
XCL108B541ER-G - Torex - 3D model - Other - CL-2025-02
click to zoom

XCL108B541ER-G Details

  • Manufacturer Part Number:

    XCL108B541ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCL108B541ER-G Overview

Use the download button to access the XCL108B541ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10, or try a keyword search, such as Switching Regulator or Controllers
