XCL109A313KR-G - Torex

Description: 1.0A, Inductor Built-in Step-up DC/DC Converters

Download XCL109A313KR-G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XCL109A313KR-G model

Email notifications will be applied after download.

Send part feedback

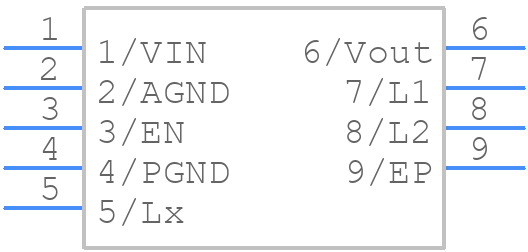

Symbol

XCL109A313KR-G - Torex - PCB symbol

PCB Footprints

XCL109A313KR-G - Torex PCB footprint - Other - Other - CL-2025-02

3D Models

XCL109A313KR-G - Torex - 3D model - Other - CL-2025-02

Datasheet Download Datasheet
Stock & Prices Price & Stock for XCL109A313KR-G
Part Number XCL109A313KR-G
Manufacturer Torex
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - CL-2025-02
Released Date Aug 13, 2024
Last Modified Date Aug 13, 2024 8:32 AM UTC
Pinout / Pin List Click Here (Member Only)

XCL109A313KR-G Details

Manufacturer Part Number:
XCL109A313KR-G
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Torex Semiconductor LTD
YTEOL:
10
Analog IC - Other Type:
SWITCHING REGULATOR
