XCL109D483KR-G - Torex

Description: 1.0A, Inductor Built-in Step-up DC/DC Converters

Download XCL109D483KR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

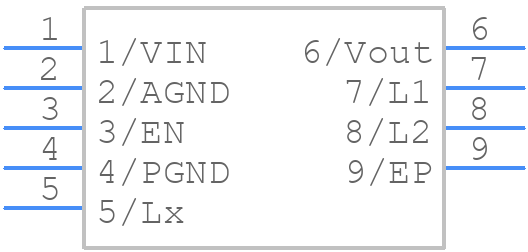

XCL109D483KR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL109D483KR-G - Torex PCB footprint - Other - Other - CL-2025-02
click to zoom
3D Models
XCL109D483KR-G - Torex - 3D model - Other - CL-2025-02
click to zoom

XCL109D483KR-G Details

  • Manufacturer Part Number:

    XCL109D483KR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • Analog IC - Other Type:

    SWITCHING REGULATOR
