A good PCB layout for XCL202B181ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for XCL202B181ER-G is -40°C to 85°C. However, the device can operate at a higher temperature range with derating. It is recommended to consult the datasheet for more information on temperature derating.
Yes, XCL202B181ER-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications. However, it is recommended to consult the datasheet and application notes for more information on reliability and qualification.
To protect XCL202B181ER-G from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage transients.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL202B181ER-G Overview

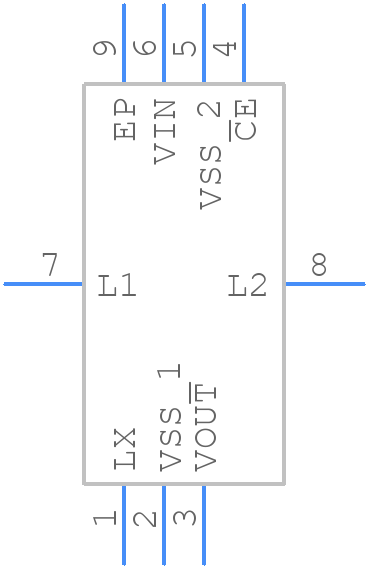

Use the download button to access the XCL202B181ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
