A recommended PCB layout for XCL206A303AR-G includes a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 10uF) placed close to the IC. Additionally, it's essential to minimize the distance between the input capacitor and the IC's VIN pin.
To ensure output voltage stability, it's crucial to select the correct output capacitor (e.g., 10uF to 22uF) and place it close to the IC's VOUT pin. Additionally, the input capacitor should be selected based on the input voltage and current requirements. A soft-start circuit can also be implemented to reduce inrush current and ensure a stable output voltage.
The maximum ambient temperature for reliable operation of XCL206A303AR-G is 85°C. However, it's essential to consider the device's power dissipation and thermal resistance (θJA) when operating at high temperatures. A heat sink or thermal management system may be required to ensure reliable operation.
Yes, XCL206A303AR-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the IC is mounted using a reliable method (e.g., soldering or wire bonding) to prevent mechanical stress and damage.
To troubleshoot issues with XCL206A303AR-G, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component selection to ensure they meet the recommended specifications. Use an oscilloscope to monitor the output voltage and input voltage ripple. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor's technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206A303AR-G Overview

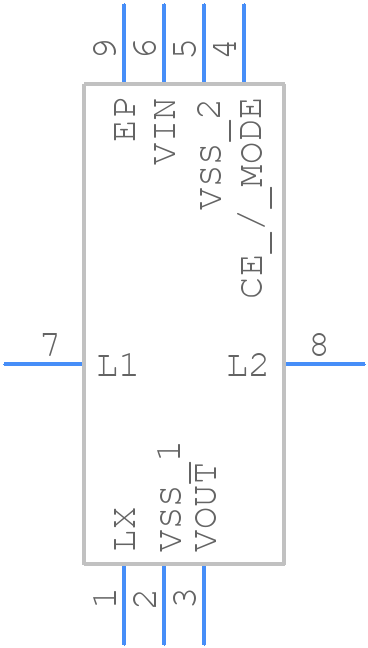

Use the download button to access the XCL206A303AR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
