XCL206A333CR-G - Torex

Description: DC DC CONVERTER 3.3V

Download XCL206A333CR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

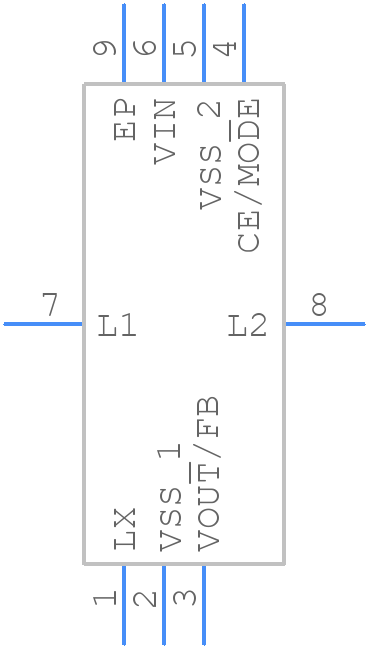

Symbol
XCL206A333CR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL206A333CR-G - Torex PCB footprint - Other - Other - XCL206A333CR-G-4
click to zoom
3D Models
XCL206A333CR-G - Torex - 3D model - Other - XCL206A333CR-G-4
click to zoom

XCL206A333CR-G Details

  • Manufacturer Part Number:

    XCL206A333CR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    8

  • Additional Feature:

    PFM MODE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N8

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8,.08,0.1,22

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.04 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3450 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.55 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

XCL206A333CR-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
  • To ensure output voltage stability, use a minimum output capacitance of 10uF with an ESR of 10mΩ or less. Additionally, place a 1uF ceramic capacitor in parallel with the output capacitor to filter high-frequency noise. Also, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum ambient temperature for XCL206A333CR-G is 85°C. However, the device can operate up to 105°C with a derated output current. It's essential to ensure proper heat dissipation and thermal management to prevent overheating and ensure reliable operation.
  • Yes, XCL206A333CR-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard for automotive grade devices and has a high MTBF (Mean Time Between Failures) rating. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure reliable operation in these applications.
  • To troubleshoot issues with XCL206A333CR-G, start by verifying the input voltage, output current, and ambient temperature are within the recommended ranges. Check the PCB layout for any signs of damage, oxidation, or contamination. Use an oscilloscope to measure the output voltage and input voltage ripple. If the issue persists, consult the datasheet and application notes or contact Torex's technical support team for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCL206A333CR-G Overview

Use the download button to access the XCL206A333CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20, or try a keyword search, such as Switching Regulator or Controllers
