Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB should be designed to minimize noise and EMI.
To ensure stability, it's essential to follow the recommended capacitor values and types, and to place them close to the IC. Additionally, the input voltage should be well-regulated, and the output should be decoupled with a capacitor of at least 1uF.
The maximum ambient temperature for XCL206B283AR-G is 85°C, but it's recommended to operate the device at a temperature below 70°C for optimal performance and reliability.
Yes, XCL206B283AR-G is designed to operate in high-vibration environments, but it's essential to ensure that the PCB is properly secured and that the components are properly soldered to prevent mechanical stress.
To troubleshoot issues, start by checking the input voltage, output voltage, and current consumption. Verify that the capacitors are properly connected and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes or contact Torex support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206B283AR-G Overview

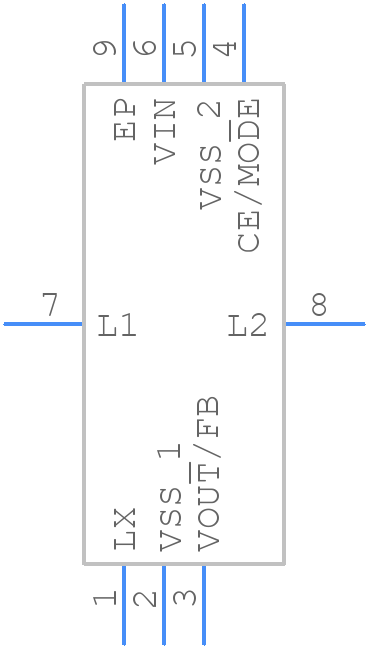

Use the download button to access the XCL206B283AR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
