Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Torex recommends using a thermal pad or thermal via under the IC to improve heat dissipation. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with other components or copper traces.
Although the datasheet doesn't specify a maximum voltage for the EN pin, Torex recommends keeping it within the VCC range (1.7V to 5.5V) to ensure proper operation and prevent damage to the device.
While the XCL206B283CR-G is rated for operation up to 105°C, Torex recommends derating the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation in high-temperature environments.
Torex provides a troubleshooting guide in their application note AN-103, which covers common issues, diagnostic techniques, and solutions for the XCL206B283CR-G.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206B283CR-G Overview

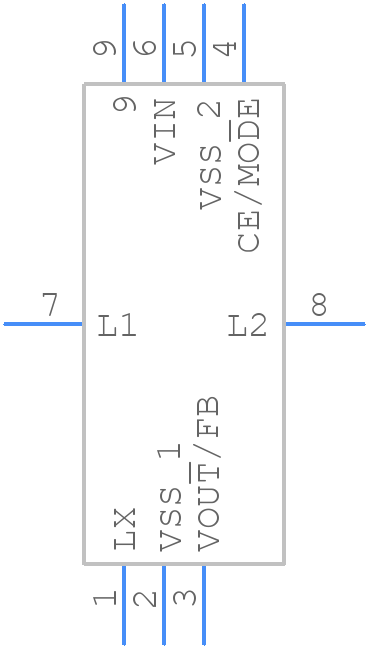

Use the download button to access the XCL206B283CR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
