Torex recommends a compact PCB layout with short traces and minimal vias to reduce noise and parasitic inductance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for analog and digital grounds.
To ensure output voltage stability, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, ensure that the input voltage is stable and within the recommended range, and that the device is operated within its specified temperature range.
Although the datasheet specifies a maximum input voltage of 6.5V, Torex recommends limiting the input voltage to 6.0V or lower to ensure reliable operation and to prevent damage to the internal circuitry.
While XCL206B2L3AR-G is rated for operation up to 105°C, Torex recommends derating the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet and application notes for specific guidelines on high-temperature operation.
To troubleshoot issues with XCL206B2L3AR-G, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and component selection. Consult the datasheet and application notes for troubleshooting guidelines, and consider using a scope or logic analyzer to diagnose issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206B2L3AR-G Overview

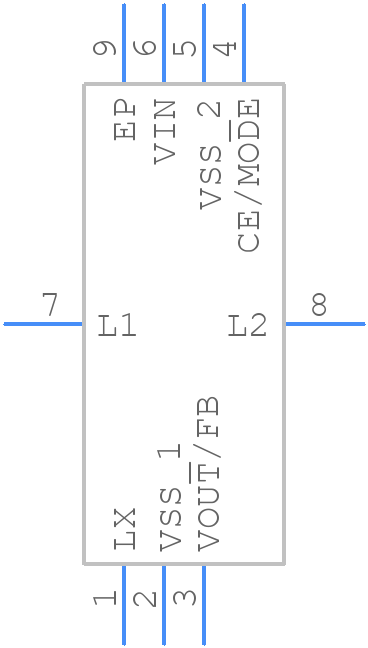

Use the download button to access the XCL206B2L3AR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
