A good PCB layout for the XCL206C333CR-G should include a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10uF) close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure a stable output voltage, make sure to use a suitable output capacitor (e.g., 10uF) with a low ESR, and a minimum output current of 1mA. Also, ensure that the input voltage is within the recommended range (2.5V to 6.0V) and that the device is operated within the recommended temperature range (-40°C to 85°C).
The maximum input voltage that can be applied to the XCL206C333CR-G is 6.0V. Exceeding this voltage may cause damage to the device.
The XCL206C333CR-G is rated for operation up to 85°C. However, it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for more information on temperature derating.
The output voltage of the XCL206C333CR-G can be calculated using the following formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.24V), R1 is the feedback resistor, and R2 is the divider resistor.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206C333CR-G Overview

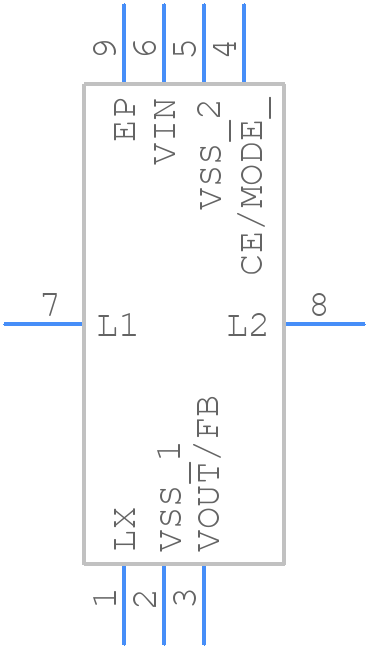

Use the download button to access the XCL206C333CR-G schematic symbol and PCB footprint.
