XCL209F083DR - Torex

Description: TOREX - XCL209F083DR - BUCK, SYNCH, 0.4A, 3MHZ, ADJ, USP-108

Download XCL209F083DR Model

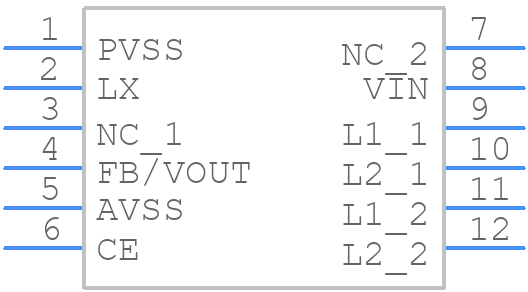

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL209F083DR - Torex PCB footprint - Other - Other - USP-10B03
click to zoom
3D Models
XCL209F083DR - Torex  - 3D model - Other - USP-10B03
click to zoom

XCL209F083DR Details

  • Manufacturer Part Number:

    XCL209F083DR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.08,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3450 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL SILVER GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    2.15 mm

XCL209F083DR Frequently Asked Questions (FAQs)

  • A good PCB layout for XCL209F083DR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the Equivalent Series Resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum ambient temperature range for XCL209F083DR is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
  • Yes, XCL209F083DR is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • To protect XCL209F083DR from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range.
