Torex provides a recommended PCB layout in their application notes, which includes guidelines for component placement, thermal vias, and copper pours to minimize noise and ensure stable operation.
Torex recommends using a thermal pad or thermal tape to attach the device to a heat sink or metal plate, and ensuring good airflow around the device to keep the junction temperature below 125°C.
The maximum allowed voltage on the EN pin is 6V. To protect it from overvoltage, use a voltage divider or a zener diode to clamp the voltage to a safe level, and consider adding a series resistor to limit the current.
Start by checking the input voltage, output voltage, and enable pin voltage using an oscilloscope or multimeter. Verify that the device is properly configured and that the input and output capacitors are of sufficient value and quality. Consult the datasheet and application notes for troubleshooting guidelines.
The XCL210A111GR-G is rated for operation up to 105°C, but the device's performance and reliability may degrade at higher temperatures. Consult the datasheet and application notes for guidance on high-temperature operation, and consider using a heat sink or thermal management system to keep the device within its operating range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL210A111GR-G Overview

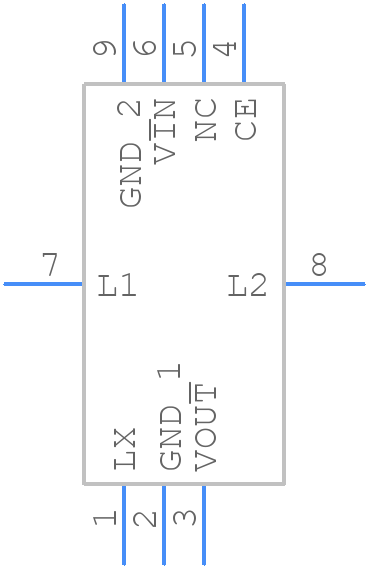

Use the download button to access the XCL210A111GR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL21,
or try a keyword search, such as Switching Regulator or Controllers
