Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the output voltage. Refer to the application note AN-104 for more details.
The maximum ambient temperature range for XCL210A331GR-G is -40°C to +85°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to consider thermal management and derating factors in the system design.
Yes, XCL210A331GR-G is suitable for high-reliability and automotive applications. Torex provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001. However, it's essential to consult with Torex's sales team or application engineers to ensure the device meets the specific requirements of your application.
Torex provides a troubleshooting guide in their application note AN-104, which covers common issues and their possible causes. Additionally, engineers can consult with Torex's application engineers or technical support team for personalized assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL210A331GR-G Overview

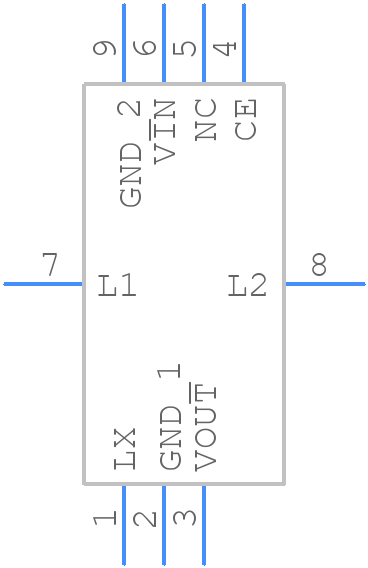

Use the download button to access the XCL210A331GR-G schematic symbol and PCB footprint.
