XCL210C181GR-G footprint, schematic symbol and 3D model by Torex

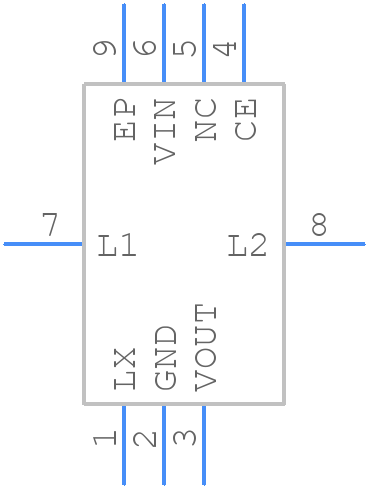

Symbol

click to zoom

PCB Footprints

XCL210C181GR-G - Torex PCB footprint - Other - Other - XCL210C181GR-G-2

click to zoom

3D Models

XCL210C181GR-G - Torex - 3D model - Other - XCL210C181GR-G-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XCL210C181GR-G
Part Number XCL210C181GR-G
Manufacturer Torex
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - XCL210C181GR-G-2
Released Date Jul 6, 2021
Last Modified Date Sep 29, 2025 4:52 PM UTC
Pinout / Pin List Click Here (Member Only)

XCL210C181GR-G Details

Manufacturer Part Number:
XCL210C181GR-G
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Torex Semiconductor LTD
YTEOL:
10
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE FREQUENCY MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XQCC-N8
Length:
2.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
1.836 V
Output Voltage-Min:
1.764 V
Output Voltage-Nom:
1.8 V
Package Body Material:
UNSPECIFIED
Package Code:
HQCCN
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.04 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Silver/Gold (Ni/Ag/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.55 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
10
Width:
2 mm

XCL210C181GR-G Frequently Asked Questions (FAQs)

A good PCB layout for XCL210C181GR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for XCL210C181GR-G is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
Yes, XCL210C181GR-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
To protect XCL210C181GR-G from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

XCL210C181GR-G Overview

Use the download button to access the XCL210C181GR-G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XCL21, or try a keyword search, such as Switching Regulator or Controllers
