XCL211B082DR - Torex

Description: Switching Voltage Regulators 2.0A Inductor DCDC Converter

Download XCL211B082DR Model

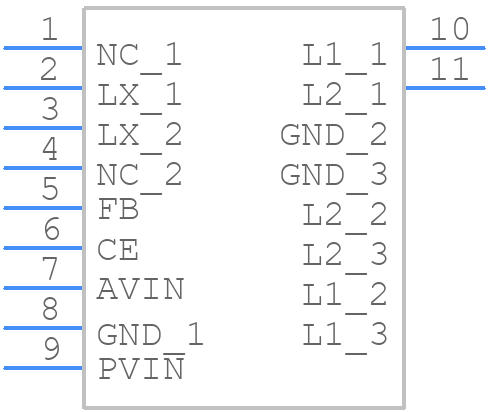

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL211B082DR - Torex PCB footprint - Other - Other - USP-11B01
click to zoom
3D Models
XCL211B082DR - Torex  - 3D model - Other - USP-11B01
click to zoom

XCL211B082DR Details

  • Manufacturer Part Number:

    XCL211B082DR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    8

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XXSS-N11

  • Length:

    4.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SPECIAL SHAPE

  • Seated Height-Max:

    1.35 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    3.1 mm

XCL211B082DR Frequently Asked Questions (FAQs)

  • A good PCB layout for XCL211B082DR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum ambient temperature range for XCL211B082DR is -40°C to 85°C. However, the device can operate up to 125°C with a derated output current.
  • Yes, XCL211B082DR is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • XCL211B082DR has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as fuses or PTC thermistors to prevent damage from excessive current or temperature.
