ALSO OPERATES IN PFM MODE; OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.7 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XXSS-N11
Length:
4.7 mm
Number of Functions:
1
Number of Terminals:
11
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
SPECIAL SHAPE
Seated Height-Max:
1.35 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
3.1 mm
XCL212B082DR Frequently Asked Questions (FAQs)
A good PCB layout for XCL212B082DR involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. The output capacitor should be placed close to the device, and the PCB layout should be designed to minimize the loop inductance.
The maximum ambient temperature range for XCL212B082DR is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. It's essential to consult the datasheet and thermal management guidelines for proper operation.
Yes, XCL212B082DR is suitable for high-reliability applications. Torex Semiconductor LTD provides a range of reliability tests and qualifications, including AEC-Q100, to ensure the device meets the stringent requirements of the aerospace and automotive industries.
To troubleshoot issues with XCL212B082DR, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the output voltage. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor LTD's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL212B082DR Overview

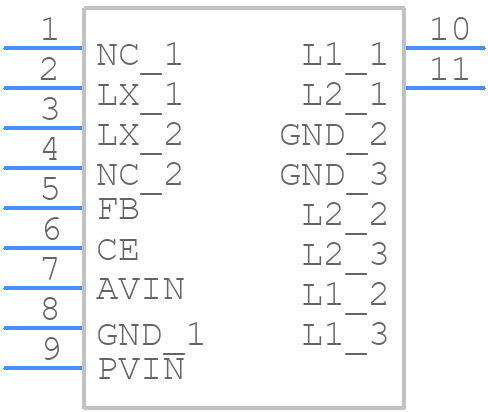

Use the download button to access the XCL212B082DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL21,
or try a keyword search, such as Switching Regulator or Controllers
