Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, placing decoupling capacitors close to the device can help reduce noise and improve performance.
The XCL214B303DR has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal via array or a thermal pad on the PCB can help dissipate heat. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help keep the junction temperature within the recommended range.
Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, depending on the input voltage and output current requirements. A 2.2uF or 4.7uF ceramic capacitor is a good starting point. The capacitor should be placed close to the VIN pin and have a low impedance path to the GND pin.
To troubleshoot issues with the XCL214B303DR, start by verifying the input voltage, output voltage, and output current are within the recommended ranges. Check the PCB layout for any signs of damage, overheating, or poor soldering. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consult the Torex application note and contact Torex support for further assistance.
Yes, the XCL214B303DR is compatible with lead-free soldering processes. The device is RoHS compliant and can be soldered using lead-free solder alloys with a peak reflow temperature of 260°C or lower.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL214B303DR Overview

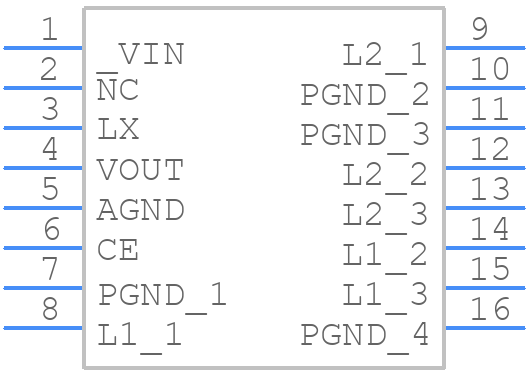

Use the download button to access the XCL214B303DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL21,
or try a keyword search, such as Switching Regulator or Controllers
