XCL214B333DR - Torex

Description: Switching Voltage Regulators 1.5A Inductor DCDC Converter

Download XCL214B333DR Model

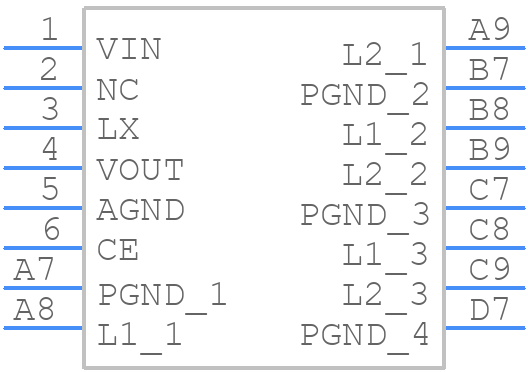

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL214B333DR - Torex PCB footprint - Other - Other - XCL214B333DR-2
click to zoom
3D Models
XCL214B333DR - Torex  - 3D model - Other - XCL214B333DR-2
click to zoom

XCL214B333DR Details

  • Manufacturer Part Number:

    XCL214B333DR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRE PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N9

  • Length:

    3.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Silver/Gold (Ni/Ag/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    2.5 mm

XCL214B333DR Frequently Asked Questions (FAQs)

  • A good PCB layout for XCL214B333DR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum ambient temperature range for XCL214B333DR is -40°C to 85°C. However, the device can operate up to 125°C with a derated output current.
  • Yes, XCL214B333DR is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • XCL214B333DR has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as fuses or PTC thermistors to prevent damage from excessive current or heat. Additionally, ensure good airflow and heat dissipation to prevent overheating.
