A good PCB layout for the XCL219B183FR-G should prioritize thermal management, minimize noise, and ensure proper power supply decoupling. A 4-layer PCB with a solid ground plane, wide power traces, and a thermal relief pattern around the device can help achieve optimal performance.
To ensure the XCL219B183FR-G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Implement thermal monitoring, over-voltage protection, and over-current protection to prevent damage. Also, follow the recommended operating conditions and derating guidelines provided in the datasheet.
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF to 10 μF is recommended for the input capacitor. This helps to filter out noise, reduce ripple, and ensure stable operation. The exact value may vary depending on the specific application and input voltage.
The XCL219B183FR-G is rated for operation up to 105°C. However, it's essential to consider the device's power dissipation, thermal resistance, and derating factors when operating in high-temperature environments. Ensure proper heat sinking, and consider using a heat sink or thermal interface material to maintain a safe junction temperature.
To troubleshoot issues with the XCL219B183FR-G, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL219B183FR-G Overview

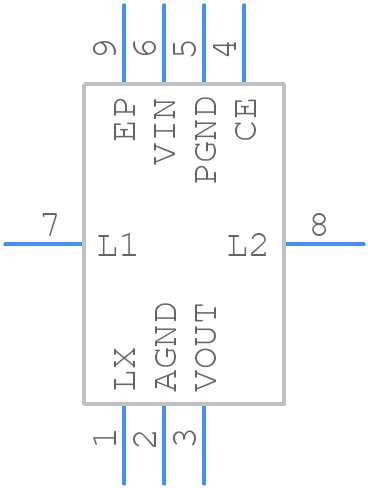

Use the download button to access the XCL219B183FR-G schematic symbol, PCB footprint, and 3D model.
