Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure stable output voltage, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, ensure the input voltage is within the recommended range, and the output current is within the specified maximum rating.
The maximum ambient temperature for XCL219B303FR-G is 85°C. However, the device can operate up to 105°C with derating. Refer to the datasheet for detailed thermal derating information.
Yes, XCL219B303FR-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard and has been tested to ensure reliability and robustness in harsh environments.
Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Refer to the datasheet for the quiescent current value.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL219B303FR-G Overview

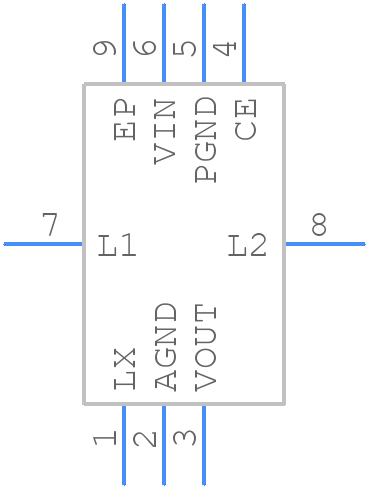

Use the download button to access the XCL219B303FR-G schematic symbol, PCB footprint, and 3D model.
