A good PCB layout for XCL220B103FR-G involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the IC. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
The maximum ambient temperature range for XCL220B103FR-G is -40°C to 85°C. However, the device can operate up to 125°C junction temperature.
Yes, XCL220B103FR-G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow the recommended operating conditions and to perform thorough testing and validation for the specific application.
To handle the thermal dissipation of XCL220B103FR-G, it is recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. The thermal resistance of the device is 125°C/W, and the maximum junction temperature is 125°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL220B103FR-G Overview

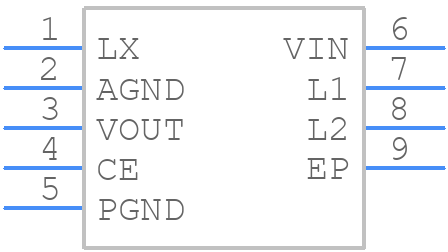

Use the download button to access the XCL220B103FR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
