Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pin. A detailed layout guide can be found in the Torex application note AN-104.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the input and output capacitors should be selected based on the specific application requirements. A minimum ESR of 0.1 ohms is recommended for the output capacitor. The feedback resistors should be chosen to ensure a stable gain margin.
The XCL221B2H1ER-G is rated for operation from -40°C to +85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for detailed information on thermal derating.
Yes, the XCL221B2H1ER-G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and ensure that the device is used within its specified ratings.
Start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure that the device is operated within its specified ratings. Consult the datasheet and application notes for troubleshooting guidelines and common failure modes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL221B2H1ER-G Overview

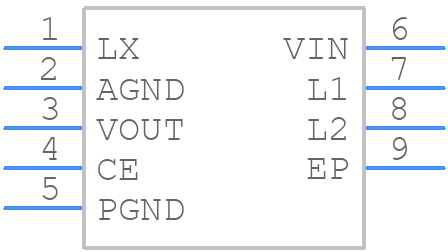

Use the download button to access the XCL221B2H1ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
