A recommended PCB layout for XCL223A183D2-G would be to keep the input and output capacitors close to the IC, use a solid ground plane, and minimize the length of the traces to reduce noise and EMI. Additionally, it's recommended to use a thermal via under the IC to improve heat dissipation.
To ensure the stability of the output voltage, it's essential to follow the recommended capacitor values and types in the datasheet. Additionally, the input voltage should be well-regulated, and the output should be decoupled with a capacitor of sufficient value and low ESR. It's also recommended to add a soft-start circuit to prevent inrush currents during startup.
The maximum ambient temperature for reliable operation of XCL223A183D2-G is 85°C. However, it's recommended to derate the output current and consider thermal management techniques such as heat sinks or thermal interfaces to ensure reliable operation at high temperatures.
Yes, XCL223A183D2-G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with XCL223A183D2-G, start by checking the input voltage, output voltage, and current. Verify that the capacitors are of the correct value and type, and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the input and output. If the issue persists, consider consulting the datasheet, application notes, or contacting Torex Semiconductor's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL223A183D2-G Overview

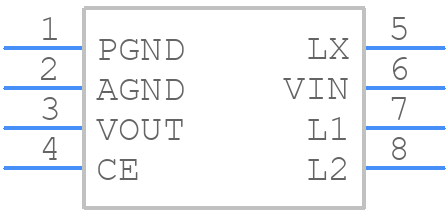

Use the download button to access the XCL223A183D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
